02. Introduction to Relational Model

Structure of Relational Databases

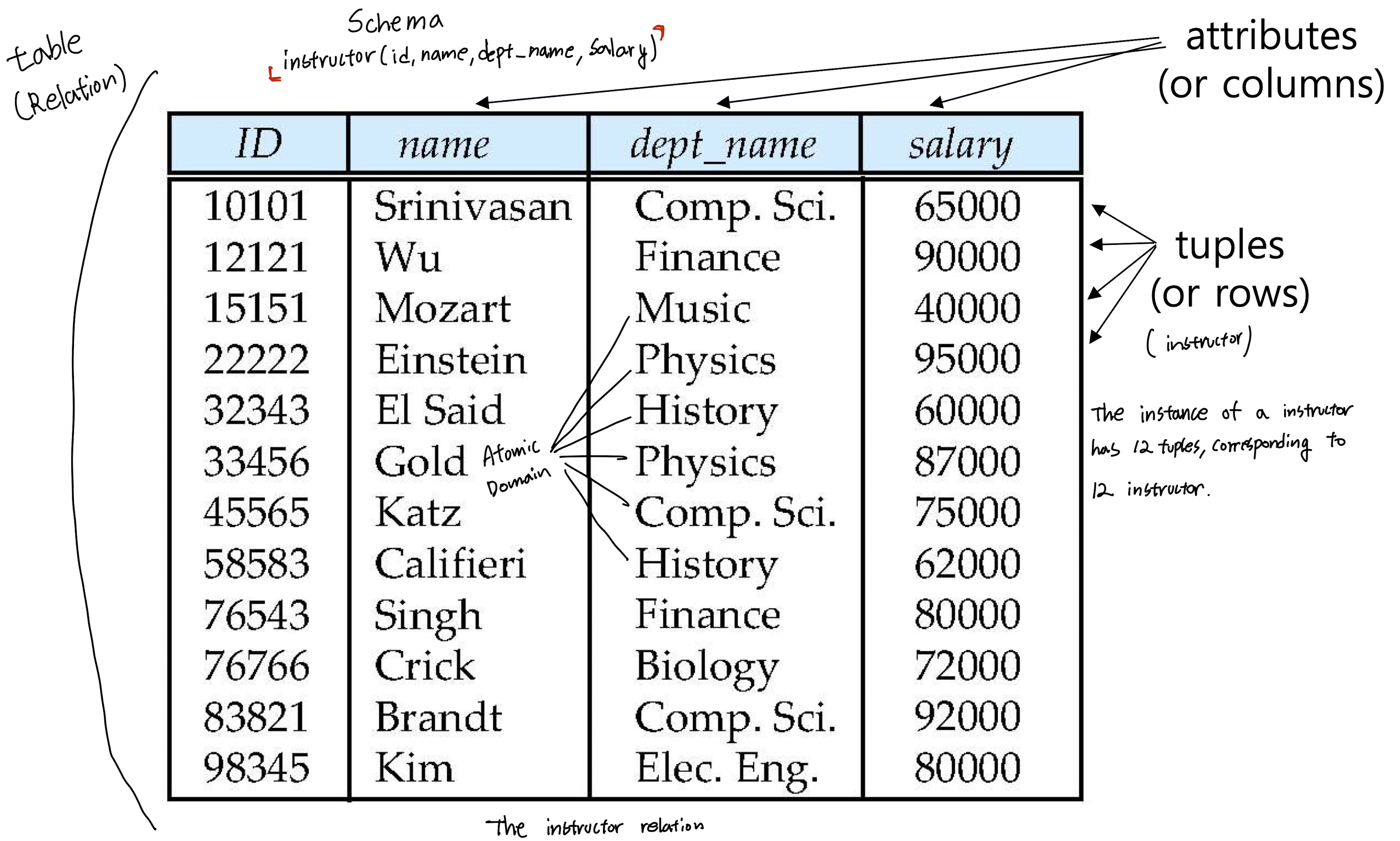

Relation Schema and Instance

• Schema: R = (A₁, A₂, …, A_n)
• A₁, A₂, …, A_n are attributes
• Order of tuples is irrelevant

Domain

For each attribute of a relation, there is a set of permitted values

• Attribute values(domain) are (normally) required to be atomic

  Atomic

  • A domain is atomic if elements of the domain are considered to be indivisible units

e.g. where domain for phone number isn’t atomic

EmployeeID	Name	Phone Numbers
1	John Doe	555-1234, 555-5678
2	Jane Smith	555-8765, 555-4321

Null

Special value that signifies that the values is unknown or does not exist

Key

Super Key

Set of one or more attributes that, taken collectively, allow us to identify uniquely a tuple in the relation

Candidate key

Minimal super keys

Primary Key

Candidate key that is chosen by the database designer as the principal means of identifying tuples within a relation

Foreign Key

• Constraint: Value in one relation must appear in another relation

  e.g.

  EmployeeID (PK)	SSN (Candidate Key)	Email (Candidate Key)	Name	DepartmentID (FK)
  1	123-45-6789	john.doe@example.com	John Doe	10
  2	987-65-4321	jane.smith@example.com	Jane Smith	20

  DepartmentID (PK)	DepartmentName
  10	Sales
  20	Engineering

  • Super Key: In the Employees table, any combination of attributes that uniquely identifies a row (e.g., {EmployeeID}, {SSN, Email}, etc.) is a super key.
  • Candidate Key: Minimal super keys that cannot be reduced further. Here, EmployeeID, SSN, and Email are potential candidate keys.
  • Primary Key: Out of the candidate keys, EmployeeID is chosen as the primary key.
  • Foreign Key: The DepartmentID in the Employees table must match a DepartmentID in the Departments table, ensuring referential integrity.
